How do you replace the front stabilizer bar,bushings and links on your Acura MDX?

To replace bushings and links, loosen the front wheel lug nuts and raise the vehicle with jack stands. Remove the wheels and the bolts from the Sway Bar Bushing retainers. Remove the nuts attaching the Sway Bar Link to the strut/coil spring assembly and Sway Bar Kit. Detach the links, holding the stud with an Allen wrench if needed. Inspect the retainer bushings for damage and replace if needed. If the ball studs on the links are worn, replace the links. Install new links and retainer bushings, lubricating them with vegetable oil. Install the retainers and bolts, tighten to the specified torque, and reinstall the wheels. Lower the vehicle and tighten the lug nuts. For a 2007 Acura MDX, the Sway Bar Kit can be removed without removing the sub frame. For other models, a body repair shop should remove the sub frame.

How to remove the rear stabilizer bar,bushings and links in a Acura MDX?

Sway Bar Kit removal often requires removing the rear sub frame, usually due to accident damage. It's likely other components, like the sub frame, are also damaged. We advise a professional inspection before replacing the Sway Bar Kit. The rear Sway Bar Link replacement is similar to the front. On 2007 Acura MDX models, sub frame removal isn't necessary for Sway Bar Kit removal. The links and Sway Bar Bushing can be removed as described.

Genuine Acura MDX Sway Bar Bushing

Stabilizer Sway Bar Bushing

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Sway Bar Bushings found

View related parts

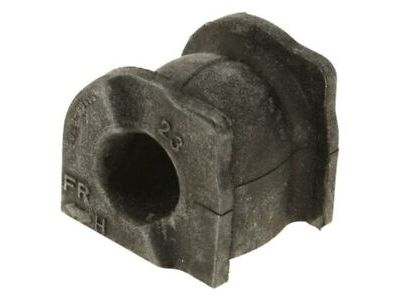

Acura MDX Suspension Stabilizer Bar Bushing
Part Number: 51306-STX-A12
$6.39 MSRP: $8.91
You Save: $2.52 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bush,Stabilizer Holder (24Dia; Bushing, Stabilizer Bar Bushing
- Replaces: 51306-SHJ-A61, 51306-STX-A11
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
Fits for 2007-2020 Acura MDX
View related parts

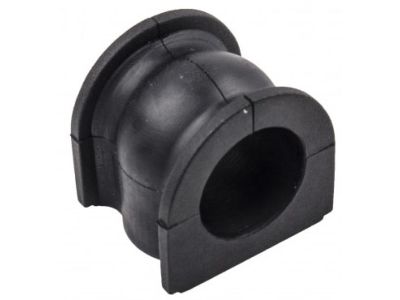

Acura MDX Stabilizer Holder Bush
Part Number: 51306-S3V-A00
$9.92 MSRP: $13.83
You Save: $3.91 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bush, Stabilizer Holder ; Stabilizer Bar Bushing; Bushing, Stabilizer Bar Bushing
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
Fits for 2001-2008 Acura MDX
View related parts
Acura MDX Suspension Stabilizer Bar Bushing (27.2Mm)
Part Number: 52306-STX-A12
$13.92 MSRP: $19.41
You Save: $5.49 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bsh,Holder Rear (27.2Mm); Bushing, Stabilizer Bar Bushing
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
Fits for 2010-2013 Acura MDX
View related parts
Acura MDX Suspension Stabilizer Bar Bushing
Part Number: 52306-STX-A01
$12.32 MSRP: $17.19
You Save: $4.87 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bush, Stabilizer Holder; Bushing, Stabilizer Bar Bushing
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
Fits for 2007-2009 Acura MDX
View related parts
Acura MDX Stabilizer Bushing, Rear (24.2Mm)
Part Number: 52306-STX-A02
$13.92 MSRP: $19.41
You Save: $5.49 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Bsh,Stabilizer Rear (24.2Mm) ; Stabilizer Bar Bushing; Bushing, Stabilizer Bar Bushing
- Position: Rear
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
Fits for 2010-2013 Acura MDX
View related parts
Acura MDX Stabilizer Holder Bush
Part Number: 52306-STX-A11
$14.90 MSRP: $20.78
You Save: $5.88 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bush, Stabilizer Holder ; Stabilizer Bar Bushing; Bushing, Stabilizer Bar Bushing
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
Fits for 2007-2009 Acura MDX
View related parts
Acura MDX Rear Stabilizer Holder Bush
Part Number: 52306-SZA-A01
$8.81 MSRP: $12.28
You Save: $3.47 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bush, Rear Stabilizer Holder ; Stabilizer Bar Bushing; Bushing, Stabilizer Bar Bushing
- Position: Rear
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
Fits for 2014-2020 Acura MDX
View related parts
Acura MDX Front Bush
Part Number: 51306-TZ5-A01
$7.68 MSRP: $10.72
You Save: $3.04 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bush, Front ; Stabilizer Bar Bushing; Bushing, Stabilizer Bar Bushing
- Position: Front
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
Fits for 2014-2020 Acura MDX
View related parts
Acura MDX Suspension Stabilizer Bar Bushing
Part Number: 52306-SZB-A01
$8.28 MSRP: $11.54
You Save: $3.26 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bush, Rear Stabilizer Holder; Bushing, Stabilizer Bar Bushing
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
Fits for 2014-2020 Acura MDX
View related parts
Acura MDX Pilot Rear Sway Bar Bushing
Part Number: 52306-S3V-A00
$6.64 MSRP: $9.27
You Save: $2.63 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Bush, Rear Stabilizer Holder ; Stabilizer Bar Bushing; Bushing, Stabilizer Bar Bushing
- Position: Rear
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
Fits for 2001-2006 Acura MDX
View related parts
Acura MDX Bush, Rear Stabilizer Holder
Part Number: 52306-TYS-A01
$7.12 MSRP: $9.94
You Save: $2.82 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bushing, Stabilizer Bar Bushing
- Position: Rear
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
Fits for 2019-2020 Acura MDX
View related parts
Acura MDX Pilot Ridgeline Front Sway Bar Bushing
Part Number: 51306-SZA-A02
$6.39 MSRP: $8.91
You Save: $2.52 (29%)
Product Specifications
- Other Name: Bush, Stabilizer Holder ; Stabilizer Bar Bushing; Bushing, Stabilizer Bar Bushing
- Position: Front
- Replaces: 51306-SZA-A01
- Warranty: This genuine part is guaranteed by Acura's factory warranty.
Fits for 2008-2013 Acura MDX

Acura MDX Sway Bar Bushing

The Sway Bar Bushing found in Acura MDX cars is an important component that supports the car's stability and enhance its handling by fixing the sway bar properly. When these bushings wear out the sway bar can become loose, which always affects the safety and performance of the car you are driving. Though it is not obviously indicated in the different Sway Bar Bushing for various years and models of the MDX, changing the bushing of a car model may have used different types of Sway Bar Bushing in the past years in order to provide the premier quality performance and safety on the road. Depending on how the Sway Bar Bushing is used, possible evaluations include its inconsistency and depreciation over usage of an Acura MDX which necessitates regular inspection and maintenance.

We provide a broad range of OEM Acura MDX Sway Bar Bushing at unbeatable prices on our website. For your OEM parts, You can count on the guaranteed quality, manufacturer's warranty, outstanding customer service, and prompt delivery. We look forward to your visit.

Acura MDX Sway Bar Bushing Parts Questions & Experts Answers

Stabilizer Holder Bush
51306-S3V-A00
Q: How do you replace the front stabilizer bar,bushings and links on your Acura MDX?
A: To replace bushings and links, loosen the front wheel lug nuts and raise the vehicle with jack stands. Remove the wheels and the bolts from the Sway Bar Bushing retainers. Remove the nuts attaching the Sway Bar Link to the strut/coil spring assembly and Sway Bar Kit. Detach the links, holding the stud with an Allen wrench if needed. Inspect the retainer bushings for damage and replace if needed. If the ball studs on the links are worn, replace the links. Install new links and retainer bushings, lubricating them with vegetable oil. Install the retainers and bolts, tighten to the specified torque, and reinstall the wheels. Lower the vehicle and tighten the lug nuts. For a 2007 Acura MDX, the Sway Bar Kit can be removed without removing the sub frame. For other models, a body repair shop should remove the sub frame.
Suspension Stabilizer Bar Bushing
51306-STX-A12
Q: How to remove the rear stabilizer bar,bushings and links in a Acura MDX?
A: Sway Bar Kit removal often requires removing the rear sub frame, usually due to accident damage. It's likely other components, like the sub frame, are also damaged. We advise a professional inspection before replacing the Sway Bar Kit. The rear Sway Bar Link replacement is similar to the front. On 2007 Acura MDX models, sub frame removal isn't necessary for Sway Bar Kit removal. The links and Sway Bar Bushing can be removed as described.
