Genuine Acura MDX Thermostat

Acura MDX Thermostat Parts Questions & Experts Answers

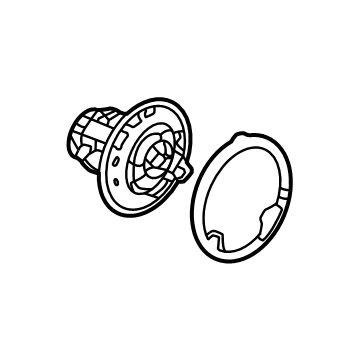

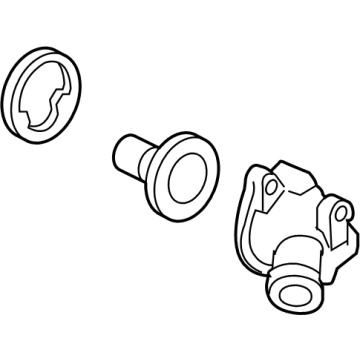

• Thermostat Assembly (Nippon Thermostat)
  19301-P8E-A10
  Q: How to replace a thermostat in a cooling system for Acura MDX?

  A: Before assuming the thermostat is responsible for a cooling system issue, inspect the coolant level, drivebelt tension, and temperature gauge operation. If the engine takes a long time to warm up based on the heater output or temperature gauge, the thermostat might be stuck open, and you should replace it with a new one. If the engine is hot but the lower radiator hose isn't, the thermostat might be stuck closed, preventing the coolant in the engine from reaching the radiator. In this case, replace the thermostat. If the lower radiator hose is warm, it indicates that the coolant is circulating and the thermostat is functioning. For further cooling system diagnosis, consult the troubleshooting section. For replacement: Disconnect the cable from the negative battery terminal. Drain the cooling system, and if the coolant is relatively new or in good shape, keep it for reuse. Remove the air intake duct between the throttle body and the air filter housing. Trace the lower radiator hose to the engine to identify the thermostat housing cover. Loosen the hose clamp and remove the hose from its fitting. If it's tight, use adjustable pliers to twist and detach it. If the hose appears old, replace it. Over time, the thermostat housing cover's hose fitting may corrode. If it's damaged during hose removal, get a new housing cover. Take off the thermostat housing cover bolts and remove the housing cover. Prepare for possible coolant leakage when breaking the gasket seal. There's no need to disconnect ground wires or the ECT sensor connector unless replacing the housing cover. Observe the thermostat's orientation and take it out. Place a new rubber seal on the thermostat, aligning the rubber tang with the jiggle pin. Fit the new thermostat into the housing, ensuring the seal's tang aligns with the housing's notch, positioning the jiggle pin at the top. Reattach the housing cover and tighten its bolts. Reconnect the hose, ensuring the clamp is secure. Reinstall any removed components. Refill the cooling system. Connect the battery. Finally, start the engine, let it reach its normal temperature, and check for any leaks and the thermostat's performance.
