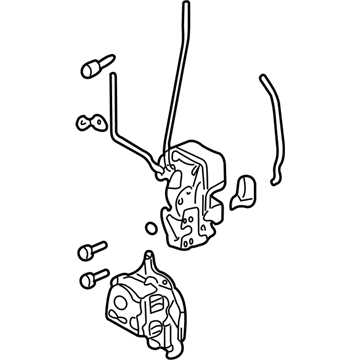

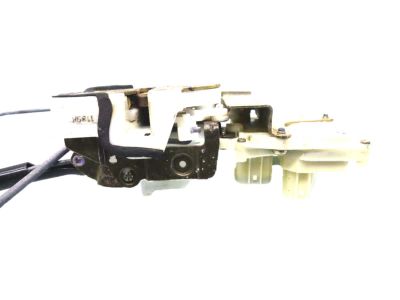

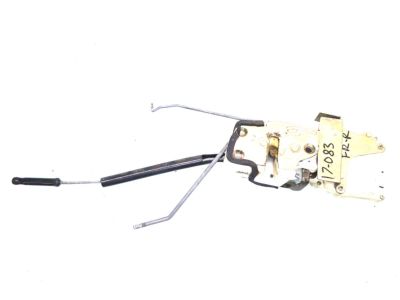

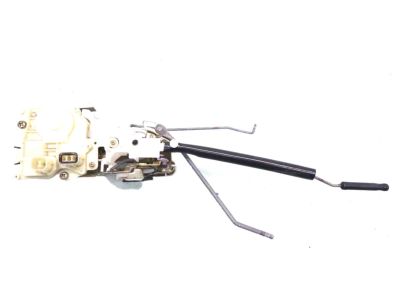

Acura 72110-S0K-A01 Front Right Door Lock Latch Actuator

You can Select Your Vehicle to check if 72110-S0K-A01 fits your vehicle.

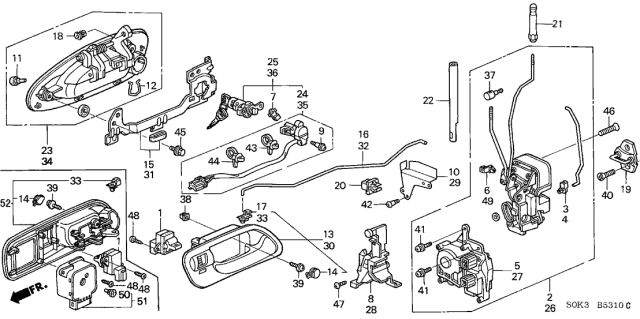

For 2003 and earlier models, begin by raising the window and removing the door trim panel and watershield. Access the large hole to remove the glass run channel; for 1999 models, pull it away to remove the bolt and then the center lower channel, while for 2000 to 2003 models, simply remove the center lower channel with the lower glass run channel. Use a small screwdriver to pry off the lock cylinder retainer clip, then pull out the lock cylinder and disconnect the actuator rod. If replacing the lock cylinder, remove the retaining screw and separate it from the lock cylinder switch, then disconnect the switch's electrical connector and detach the harness clips. Remove the O-ring weather seal from the lock cylinder hole, then take out the bolts securing the outside handle protector and remove the handle and protector as a single assembly. Disengage the locator tab securing the protector to the handle and separate them, then detach the harness clip from the protector. Note the distance the outside handle actuator rod protrudes through the junction block, pull out the handle, and pry the actuator rod out. Installation is the reverse of removal. For the door latch, raise the window, remove the door trim panel and watershield, then take out the outside handle. Detach the harness clip, disconnect the actuator rod to the inside handle, and disconnect the electrical connectors. Remove the latch mounting bolts and extract the latch through the door hole, with installation being the reverse of removal. For 2004 and later models, raise the window and remove the door trim panel and watershield, then remove the center lower channel retaining bolt and the channel itself. Disconnect the outside handle actuator rod from the bushing by swinging the plastic lock out of the way and pulling the rod out. Remove the maintenance hole seal from the door, loosen the bolt securing the lock cylinder if working on the driver's door, and disconnect the lock cylinder actuator rod. For the passenger's door, remove the maintenance hole ring and loosen the bolt securing the outside handle cover. Disconnect the lock cylinder switch electrical connector, detach the harness clip, and remove the lock cylinder and switch as a single assembly. Detach the switch from the lock cylinder by removing the retaining screw, pry loose the retaining tab, and remove the outside handle cover. Locate and remove the pin retaining the outside handle base, loosen the base retaining nut, disengage the mounting tab, and slide the base forward. Disconnect the outside handle rod from the base, with installation being the reverse of removal. For the door latch, raise the window glass, remove the door trim panel and watershield, and the center lower channel. Disconnect the outside handle rod and the lock cylinder rod, remove the lock knob retaining screw, detach the clip securing the inside handle cable, and disconnect the actuator electrical connectors from the latch mechanism. Remove the latch mounting screws and extract the latch through the door hole, ensuring not to bend any rods or cables. Installation is the reverse of removal. For the door latch striker, remove the cover and the mounting bolts, then take out the striker. Installation is the reverse of removal, and to adjust the striker, loosen the mounting bolts and move it as necessary to align with the latch mechanism, then retighten the bolts securely.

The hinges and latch assemblies should be lubricated once every 3000 miles or every three months.

The door and trunk locks should be treated with spray-on graphite lubricant.
