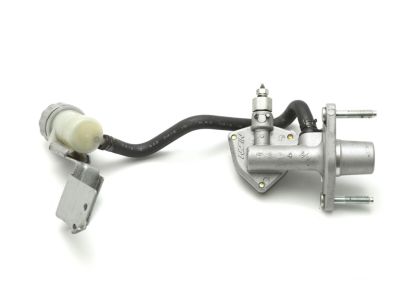

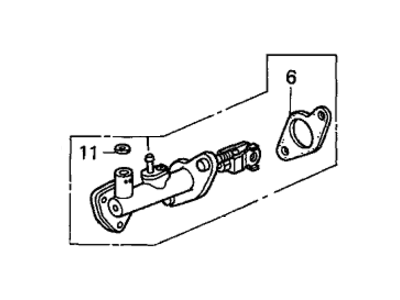

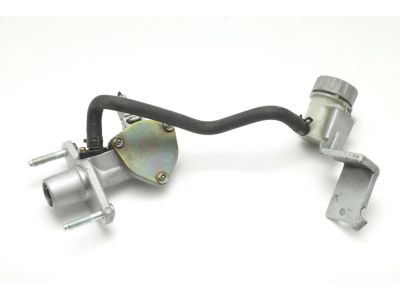

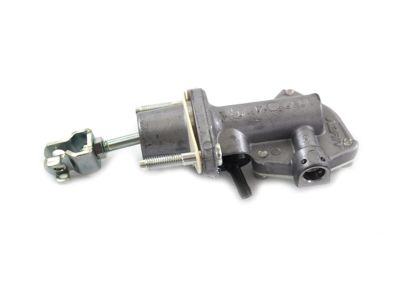

Acura 46920-S7A-A04 Clutch Master Cylinder Assembly

You can Select Your Vehicle to check if 46920-S7A-A04 fits your vehicle.

Remove the left side engine compartment cover and the front bulkhead cover. Next, take out the air filter housing, followed by the battery and battery tray. Remove the two mounting bolts from the fuse/relay box and position the assembly off to the side. Detach the clutch line mounting bracket and two clutch line clamps. Clamp a pair of locking pliers onto the clutch fluid feed hose a couple of inches downstream of the reservoir, ensuring they are tight enough to prevent fluid flow when disconnecting the hose. Remove the clutch fluid reservoir mounting bolt and set the assembly aside. Disconnect the hydraulic line at the clutch master cylinder by removing the retaining clip and separating the line from the cylinder, keeping rags handy to catch any fluid loss. Cap or plug the ends of the lines or hose to prevent fluid leakage and contamination, avoiding contact between brake fluid and paint to prevent damage. Inside the passenger compartment, remove the knee bolster and the trim panel from the driver's side. Under the dashboard, remove the cotter pin or spring clip from the master cylinder pushrod clevis, pull out the clevis pin to disconnect the pushrod from the pedal, and unscrew the two clutch master cylinder retaining nuts to remove the cylinder. For installation, reverse the removal steps, ensuring to use a new gasket between the master cylinder and the firewall, tighten the master cylinder mounting nuts to the specified torque, install a new O-ring seal on the hydraulic line fitting at the master cylinder, pry the tip of the retaining clip apart to secure it on the master cylinder pushrod clevis, fill the clutch master cylinder reservoir with brake fluid that meets DOT 3 specifications, and bleed the clutch system.
