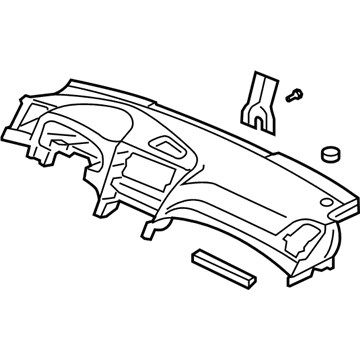

Acura 77120-SEP-A03ZA Dashboard Instrument Cluster Panel (Graphite Black)

You can Select Your Vehicle to check if 77120-SEP-A03ZA fits your vehicle.

This procedure is challenging for home mechanics due to hidden fasteners, difficult angles, and numerous electrical connectors that need to be tagged and disconnected. It is advisable for only experienced do-it-yourselfers to attempt it. When removing the instrument panel, carefully note how each piece is removed, its placement, and how it is secured, as this will facilitate reassembly. Begin by ensuring you have the anti-theft code for the radio and record the preset frequencies. Disconnect the negative battery terminal cable. For 2003 and earlier models, remove the front seats and center console, followed by all dashboard trim panels, the ground bolt at the center console's forward end, and detach the clips and wire harness clip. For models from 1999 to 2002, remove the two mounting bolts for the Data Link Connector bracket and the DLC itself. Release the tabs to remove the rear vent duct and disconnect all electrical connectors in the dash area, noting that lowering the steering column may be necessary for access. Remove the trim caps for the instrument panel mounting bolts, followed by the bolts themselves, and then proceed with reinstallation in reverse order. For 2004 and later models, follow similar initial steps by removing the front seats, center console, and dashboard trim panels. Remove the rear vent duct by pulling the clips from the brackets, detach the carpet from the vertical stanchions, and remove the two rear joint vent ducts. Disconnect the electrical connector from the yaw rate/lateral acceleration sensor, being cautious as it is sensitive, and remove the sensor and its mounting bracket. Disconnect all electrical connectors in the dash area, remove the brake pedal support bracket bolts, and detach the parking brake handle assembly without disconnecting the cables. Remove the center bracket mounting bolts and the instrument panel mounting bolts, including trim caps, and finally remove the instrument panel, completing the process by reinstalling in reverse order.
