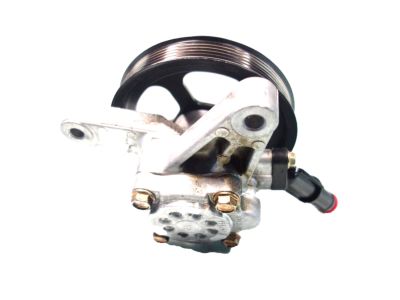

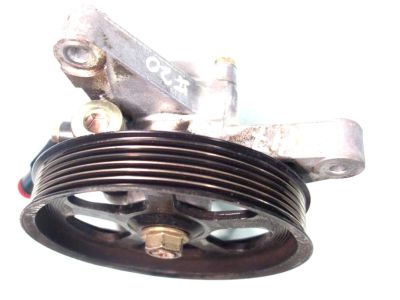

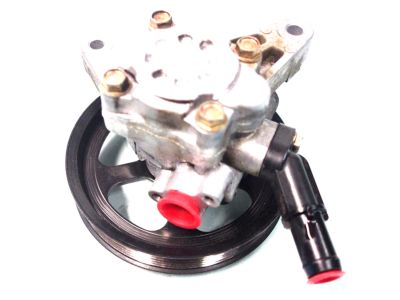

Acura 56110-RDA-A01 Power Steering Pump Sub-Assembly

You can Select Your Vehicle to check if 56110-RDA-A01 fits your vehicle.

Use shop towels to protect engine components from spilled fluid during this procedure and clean any spilled fluid immediately. On 2004 and later models, remove the right-side engine cover and engine mount bracket on the right side of the engine. Remove the drivebelt. Place a clamp on the power steering feed hose to minimize fluid loss when the hose is disconnected, then disconnect the fluid hoses at the pump. The return hose is held to the pump with a spring type clamp, and the pressure line has two bolts securing it to the pump body. Cap or plug both hoses to prevent leakage or contamination, and install a new O-ring on the end of the pressure line. It's advisable to remove the fluid from the power steering pump reservoir and replace it with new fluid before installing a replacement pump. Remove the pump mounting bolts and take the pump out of the engine. Installation is the reverse of removal, and be sure to bleed the power steering system.
