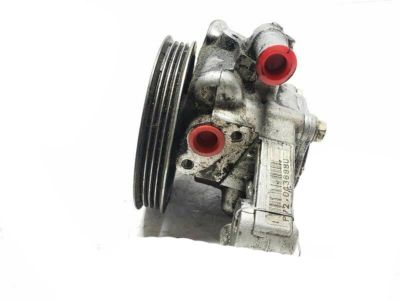

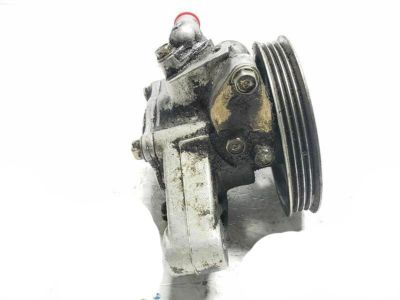

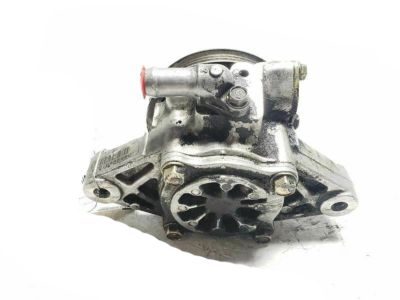

Acura 06561-P72-506RM Power Steering Pump Sub-Assembly (Reman)

1994-1997 Acura Integra 06561P72506RM

Customer Questions & Expert Answers (2)
Acura 06561-P72-506RM Power Steering Pump Sub-Assembly (Reman)
Acura 06561-P72-506RM Power Steering Pump Sub-Assembly (Reman)
Acura 06561-P72-506RM Power Steering Pump Sub-Assembly (Reman)
Acura 06561-P72-506RM Power Steering Pump Sub-Assembly (Reman)
Acura 06561-P72-506RM Power Steering Pump Sub-Assembly (Reman)
Acura 06561-P72-506RM Power Steering Pump Sub-Assembly (Reman)
  • Part Description
    Pump Sub-Assembly, Power Steering (Reman)
  • Replaces
    56100-P72-004RM
  • Manufacturer
    Acura
Make sure this part fits
$312.23 MSRP: $443.67
You Save: $131.44 (30%)
Core Charge: $75.00
Ships in 1-3 Business Days
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

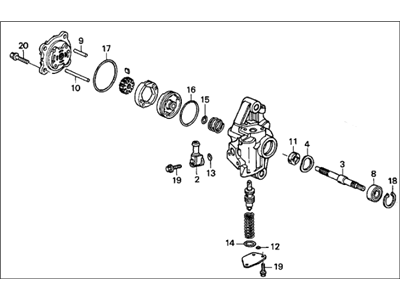

  • 06561-P72-506RM Power Steering Pump Sub-Assembly (Reman) is Ref No. 1 in the diagram below

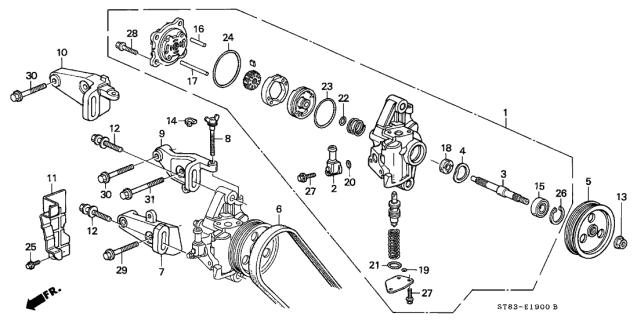

    1996 Acura Integra Power Steering Pump Sub-Assembly (Reman) Diagram for 06561-P72-506RM
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts

  • Product Specifications

    BrandGenuine Acura
    Manufacturer Part Number06561-P72-506RM
    Part DescriptionPump Sub-Assembly, Power Steering (Reman)
    Item Dimensions9.1 x 7.4 x 6.8 inches
    Item Weight3.90 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    Replaces56100-P72-004RM
    ManufacturerAcura
    SKU06561-P72-506RM
    WarrantyThis genuine Acura part is guaranteed by Acura's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California’s Proposition 65

  • Vehicle Fitment

    Year Make Model Body & Trim Emission & Transmission
    1997 Acura Integra3 Door GS, 3 Door GS-R, 3 Door LS, 3 Door RS, 3 Door Type-R, 4 Door GS, 4 Door GS-R, 4 Door LSKA 4AT, KA 5MT
    1996 Acura Integra3 Door GS-R, 3 Door LS, 3 Door RS, 4 Door GS-R, 4 Door LS, 4 Door RSKA 4AT, KA 5MT
    1995 Acura Integra3 Door GS-R, 3 Door LS, 3 Door RS, 4 Door GS-R, 4 Door LS, 4 Door RSKA 4AT, KA 5MT
    1994 Acura Integra3 Door GS-R, 3 Door LS, 3 Door RS, 4 Door GS-R, 4 Door LS, 4 Door RSKA 4AT, KA 5MT

  • Customer Questions & Expert Answers

    Q:
    Is this the correct part for my vehicle? Posted by AcuraPartsWarehouse Specialist
    A:
    You can Select Your Vehicle to check if 06561-P72-506RM fits your vehicle.
    Posted by AcuraPartsWarehouse Specialist
    Q:
    How Do I Remove and Install a Power Steering Pump? Posted by Customer
    A:
    Disconnect the cable from the negative battery terminal, then disconnect the positive battery cable. Caution: If the stereo in your vehicle is equipped with an anti-theft system, make sure you have the correct activation code before disconnecting the battery. Disconnect the fluid hoses at the pump, noting the difference between the pressure and the return hoses; the return hose is held to the pump with a spring type clamp, and the pressure line has two bolts holding it to the pump body. Cap or plug both hoses to prevent leakage or contamination. Install a new O-ring on the end of the pressure line. Remove the pump adjusting bolt and the pump mounting bolt(s) and remove the pump from the engine. Installation is the reverse of removal. Be sure to adjust the drivebelt tension and bleed the power steering system.
    Posted by AcuraPartsWarehouse Specialist
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

Genuine Acura Part 06561-P72-506RM, the Right Choice

To ensure reliability, purchase Acura part # 06561-P72-506RM Power Steering Pump Sub-Assembly (Reman). It is sometimes referred to as Acura Power Steering Pump. When it comes to quality and durability, OEM parts reign supreme. They are manufactured to meet Acura's exacting factory specifications and undergo rigorous quality control. This part fits 1994-1997 Acura Integra.

AcuraPartsWarehouse.com is a leading supplier of genuine Acura parts and accessories such as Acura 06561P72506RM Power Steering Pump Sub-Assembly (Reman). Welcome to our website where you can procure brand new OEM Acura parts. We boast a wide array of genuine Acura parts at competitive prices. If you're seeking a combination of quality, reliability, durability, and affordability, you've come to the right place. All our parts are backed by a manufacturer's warranty for your peace of mind.
