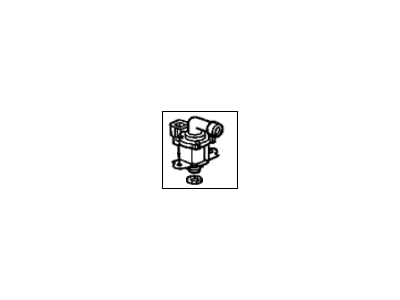

Acura 17310-S0X-A02 Vapor Canister Purge Valve

You can Select Your Vehicle to check if 17310-S0X-A02 fits your vehicle.

The fuel evaporative emissions control system absorbs fuel vapors and releases them into the engine intake during operation, where they mix with the incoming air-fuel mixture. Each system uses a canister filled with activated charcoal to absorb these vapors, though the methods of control can vary significantly. A fuel filler cap equipped with a two-way valve vents vapors to the atmosphere if the system fails, while another two-way valve on the fuel tank regulates vapor flow based on pressure changes. Fuel vapor travels through vent hoses to the charcoal canister, where it is stored until the engine reaches a preset temperature, at which point a purge cut-off solenoid valve closes, allowing intake manifold vacuum to draw vapors from the canister. Checking the system is typically beyond the average home mechanic's scope, but the EVAP system is covered by a federally mandated extended warranty. The most common issue is a disconnected or damaged hose, which should be checked against the vacuum hose routing diagram. The purge control solenoid allows vapor purging when the engine is warm and cuts off vacuum when cold; testing involves checking for vacuum presence at the hose end and ensuring the solenoid opens and closes correctly when battery voltage is applied. The two-way valve should stabilize at specific vacuum and pressure levels during testing, and if it does not, it should be replaced. To check for a canister vent shutoff valve, look for a two-wire connector on top of the canister, and if present, test its functionality by applying vacuum and checking for leaks after disconnecting the electrical connector.

The Evaporative Emissions Control (EVAP) system is designed to keep from escaping into the atmosphere fuel system vapors rich in unburned hydrocarbons. When it's warm outside, vapor from the fuel tank expands and is carried via various valves into the EVAP canister to temporarily store until the vehicle is run. Only under ideal conditions does the Powertrain Control Module (PCM) open the canister purge valve and entry vapors can be mixed with incoming air into the intake manifold where they're combusted in the combustion chambers. These vapors are stored in the EVAP canister, which is typically maintenance free, and contains activated charcoal. Included among the key components are the canister filter, canister vent shut valve, two way valve, the bypass solenoid valve and the fuel tank pressure sensor, all of which provide information and control specialty over vapor flow. When something is wrong, fuel smells common and, most of the time, engine performance suffers too, so you need to know what it is, so check hoses and connections for damage and leaks. The EVAP canister purge valve and the canister assembly can be accessed to perform repairs when the vehicle is raised, while the fuel tank pressure sensor and vent shut valve provide more involved disconnection and installation of various components. Hoses should be properly labeled and new O rings used when reassembling to maintain system integrity.
