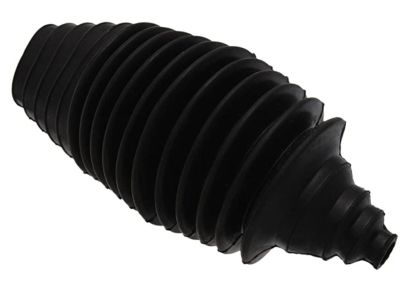

Genuine Acura MDX Rack and Pinion Boot

Acura MDX Rack and Pinion Boot Parts Questions & Answers

• Bellows
  53534-S0X-A02
  Q: How to replace the steering gear boot on a Acura MDX?

  A: Loosen the lug nuts, raise the front of the vehicle and support it securely on jack stands. Remove the wheel. Remove the tie-rod end and jam nut. Remove the rack and pinion boot clamps (the outer one can be removed with pliers; the inner one must be cut off) and slide the boot off. Before installing the new boot, wrap the threads and serrations on the end of the steering rod with a layer of tape so the small end of the new boot isn't damaged. Slide the new boot into position on the rack and pinion until it seats in the groove in the steering rod and install new clamps. Remove the tape and install the tie-rod end. Install the wheel and lug nuts. Lower the vehicle and tighten the lug nuts to the torque.
